HIGH-LEVEL DESIGN DOCUMENT · v0.1 DRAFT

An open, web-first Linux OS.

No proprietary SDKs. No platform tax. No gatekeepers. Every layer is open, auditable, and replaceable by design — not as an afterthought.

"An operating system can be a platform without being a prison. Every layer of this stack is open, auditable, and replaceable by design — not as an afterthought."

01 / MOTIVATION

Why This Exists

Modern mobile platforms are extractive by design. App stores take 15–30% of every transaction. Proprietary SDKs create lock-in. Permission systems are theater. Inference features route personal data through corporate clouds. The device you own is a platform somebody else controls.

This project is a concrete engineering claim: a useful, daily-driveable operating system can be built entirely from open standards — and openness can be a structural property of the architecture, not a marketing promise.

Core Ethos

THE MASTODON COMPARISON

Mastodon didn't win the mainstream. It didn't need to in order to matter. It proved a thesis, attracted aligned users, and demonstrated a social platform can exist outside advertising incentives. This project targets the same kind of success: a working, principled platform a small community genuinely trusts.

02 / ARCHITECTURE

Four Layers, Clean Seams

The system is four layers interacting through well-defined interfaces. The key choice: the web renderer is not an app running on the OS — it is the OS surface. Analogous to ChromeOS, without the proprietary Chrome infrastructure.

LayerDescription
Linux Kernel Mainline Linux. No custom patches. Hardware abstraction, scheduling, drivers.
Rust Compositor Thin Wayland compositor. Display surfaces, input, hardware bridges. Exposes capabilities via IPC.
Web Renderer Shell A web engine runs as the primary shell surface — not inside a window, but as the compositor's display layer.
Web Components & PWAs All user-facing UI. Extensions are web components. Apps are PWAs. Installed by URL, no gatekeeper.

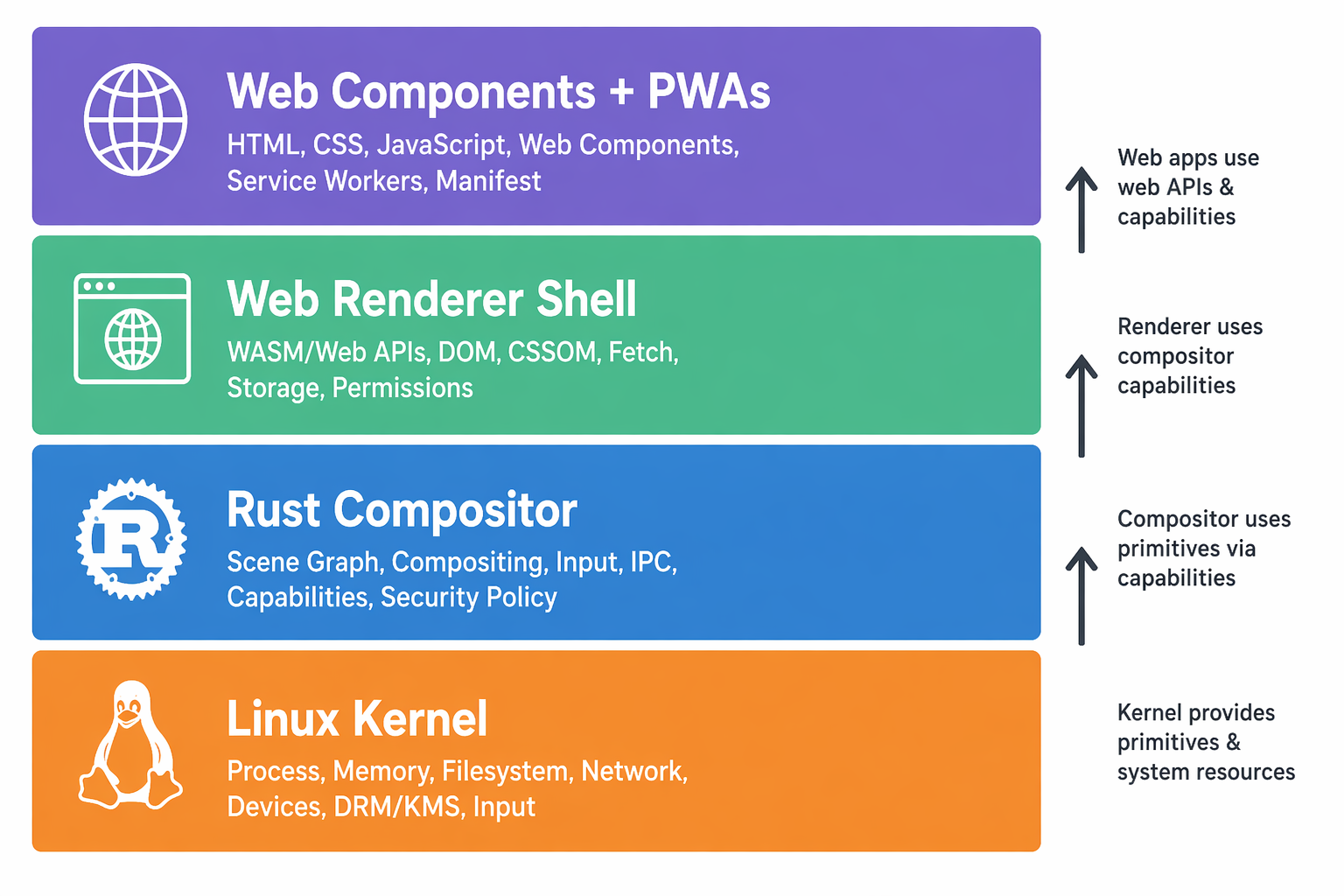

System stack diagram for brambleberryOS
Core stack: mainline Linux + minimal compositor + web-native shell.

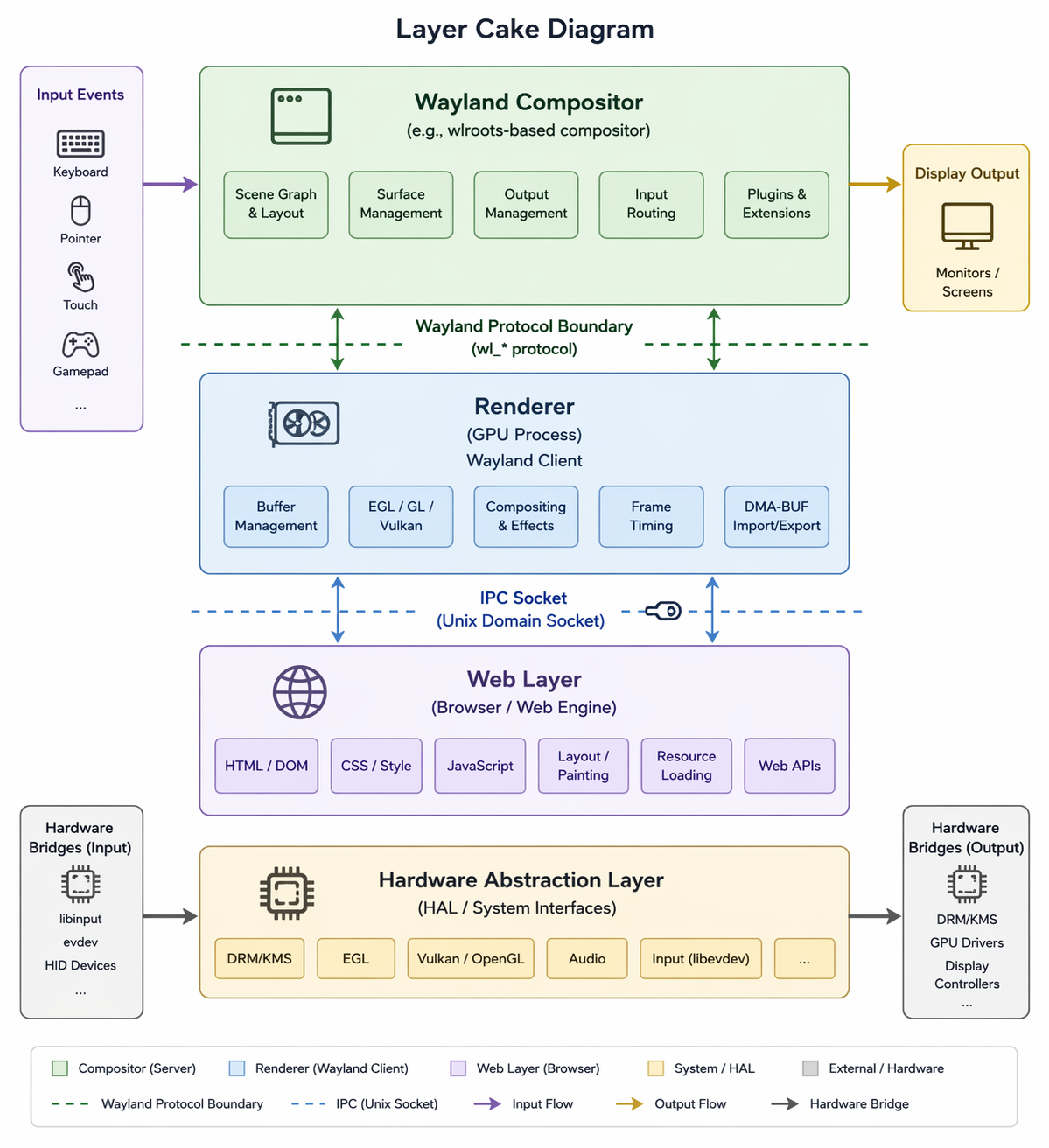

Layer cake architecture diagram
Layer boundaries and capability gates between native and web layers.

03 / COMPOSITOR

Rust, Thin on Purpose

The compositor does exactly three things: own the display, route input, bridge hardware to the web layer. Nothing else. Keeping it dumb and the web layer rich makes the system easier to port, test, and reason about.

Responsibilities

  • Wayland surfaces, input events, z-ordering
  • Power, connectivity, sensors, audio routing
  • Capability IPC over a Unix domain socket
  • Inference routing to local daemon or LAN endpoints

Explicitly Not

  • No native UI rendering — no GTK, no system chrome
  • No app lifecycle management — the shell handles it
  • No permission UI — prompts are web components

Technology Choices

Rust for memory safety without a GC at the compositor level. Smithay (pure Rust Wayland) preferred; wlroots bindings as pragmatic fallback. IPC over Unix domain sockets with JSON or Cap'n Proto.

04 / WEB SHELL

Everything You See Is a Web Page

The shell is a collection of standard web components composing the visible interface of the OS. Every UI element is an auditable, replaceable HTML/CSS/JS component.

ComponentPurpose
<system-launcher>App grid, search, recents. The home screen.
<status-bar>Time, battery, Wi-Fi, BT, notification count.
<notification-center>Notification tray, grouped by app.
<permission-prompt>Capability grant UI. Declarative, human-readable.
<lock-screen>Auth surface. PIN, biometric where available.
<settings-shell>Connectivity, display, Inference models, extensions.
<quick-settings>Slide-down toggles, brightness, volume.

Shell API Surface

A small set of JavaScript APIs bridges to the compositor — the way browsers expose navigator.geolocation. Trusted shell components only, not arbitrary PWAs.

navigator.system.battery         // battery level + charging state
navigator.system.connectivity    // Wi-Fi, BT, network status
navigator.inference.complete(opts)      // inference routing (see §Inference)
navigator.capabilities.request() // trigger a permission prompt

Theming

CSS custom properties define the theming contract. Any component that respects it is automatically themeable. Themes install by URL, exactly like extensions — no proprietary theming SDK.

05 / APPS + EXTENSIONS

PWAs + URL Extensions

Apps are PWAs. There is no other app format — that's the thesis. Extensions are standard web components installable by URL. No app store, no approval bottleneck, no SDK.

  • Any URL is a potential app. Zero-friction distribution.
  • PWA APIs are W3C-specified; apps work in any browser.
  • Install extensions by pointing the OS at a URL.
  • Manifest declares capabilities up front.
  • User approves before the component mounts into a slot.
  • Revocation is instant from settings.

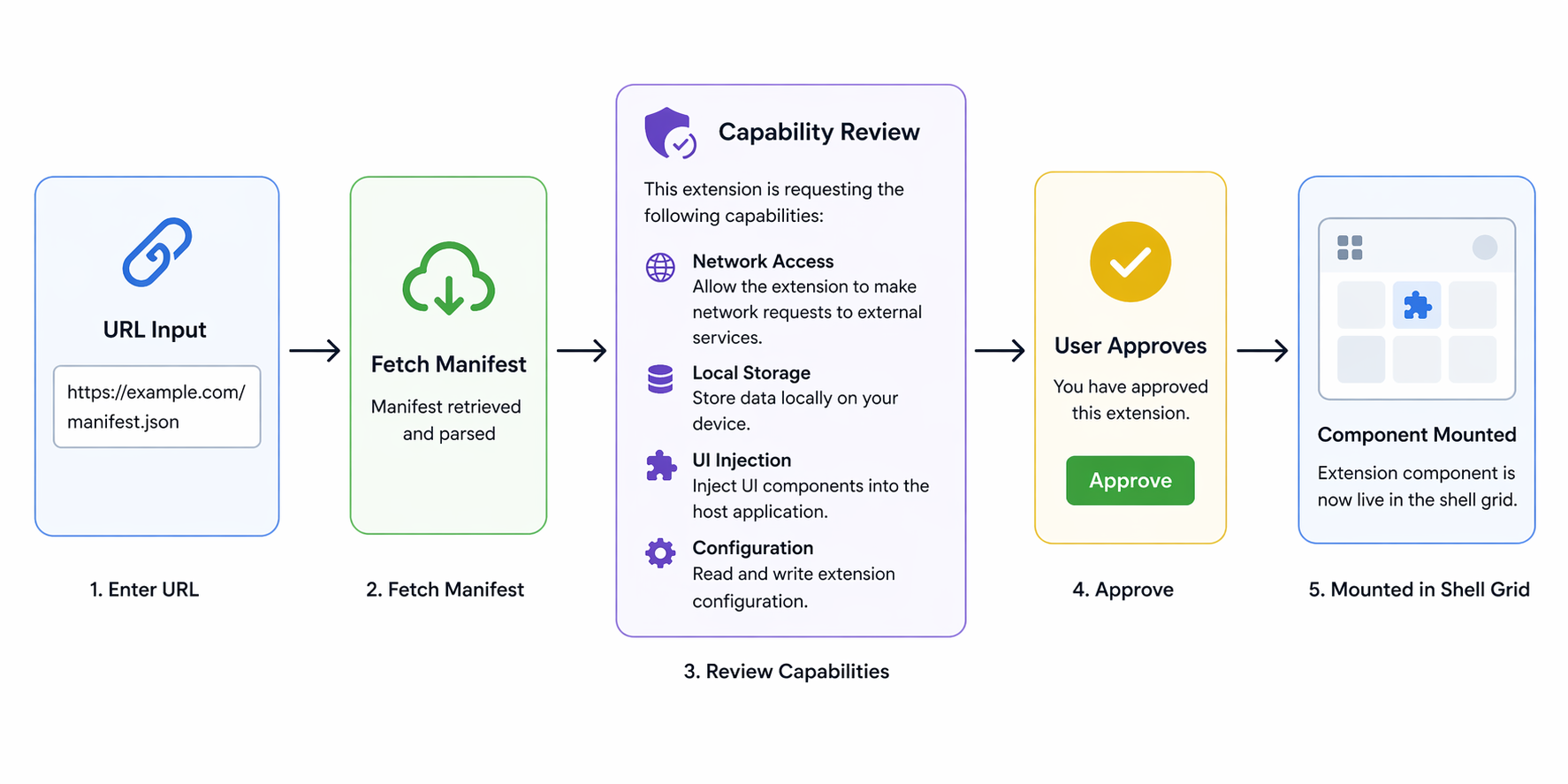

Flow from URL to extension installation
URL input → manifest fetch → capability review → shell mount.

What PWAs Get On This Platform

Because the web renderer is the shell surface, not a sandboxed browser tab, PWAs can hold deeper capabilities than in a conventional browser — always subject to user grant.

CapabilityNotes
Persistent background executionService workers with fewer artificial constraints.
Local Inferencenavigator.inference with a capability grant.
Cross-app context (read-only)inference:context:screen, explicit grant.
Hardware accessCamera, mic, sensors — capability-gated, never implicit.
Full-screen displaySystem chrome optionally hidden.
Filesystem (scoped)To user-approved directories only.

Example Extension Manifest

{
  "name": "weather-widget",
  "display_name": "Current Weather",
  "entry": "./weather-widget.js",
  "capabilities": [
    "location:coarse",
    "network:fetch",
    "inference:local"
  ],
  "slots": ["home-screen", "lock-screen"]
}

WHY THIS MATTERS

The extension catalog is the open web. Inference-generated extensions are first-class — "make me a widget that shows my next calendar event as a train departure board" becomes a real user action. A component that works here works in any browser supporting custom elements. The OS cannot trap developers.

06 / PERMISSIONS

Capabilities, Declared Up Front

Permissions are declared in the manifest, not requested at runtime. The prompt is shown once, at install, in plain language. There are no pop-ups during use.

CapabilityMeaning
location:precise / location:coarseGPS or approximate location.
network:fetchOutbound HTTP requests.
network:fetch:restrictedOnly to manifest-declared domains.
inference:localOn-device inference — never leaves the device.
inference:lanLocal network inference endpoints.
inference:remoteUser-configured remote endpoint.
inference:context:screenRead current screen content (cross-app, explicit grant).
inference:context:clipboardRead clipboard content.
storage:localPersistent storage, scoped to the component.
camera / microphoneHardware capture devices.
notifications:pushSend notifications.

Design Principles

07 / INFERENCE

Inference Routing as System Infrastructure

Inference is not an app. It is a system service — like networking or storage — that any component can request, subject to capability grants. What models run, where inference happens, and what data is shared stays entirely in the user's hands.

TierDescription
On-Device
inference:local
Quantized models (GGUF) via llama.cpp with Vulkan compute. Works offline. Nothing leaves the device. AMD RDNA2 handles 7B Q4 respectably.
Local Network
inference:lan
Home server, NAS, or desktop via mDNS/Avahi. 70B+ models, image generation. Trusted tier — no internet required.
Remote
inference:remote
Any OpenAI-compatible endpoint, user-configured. Opt-in only. The OS never phones home by default.

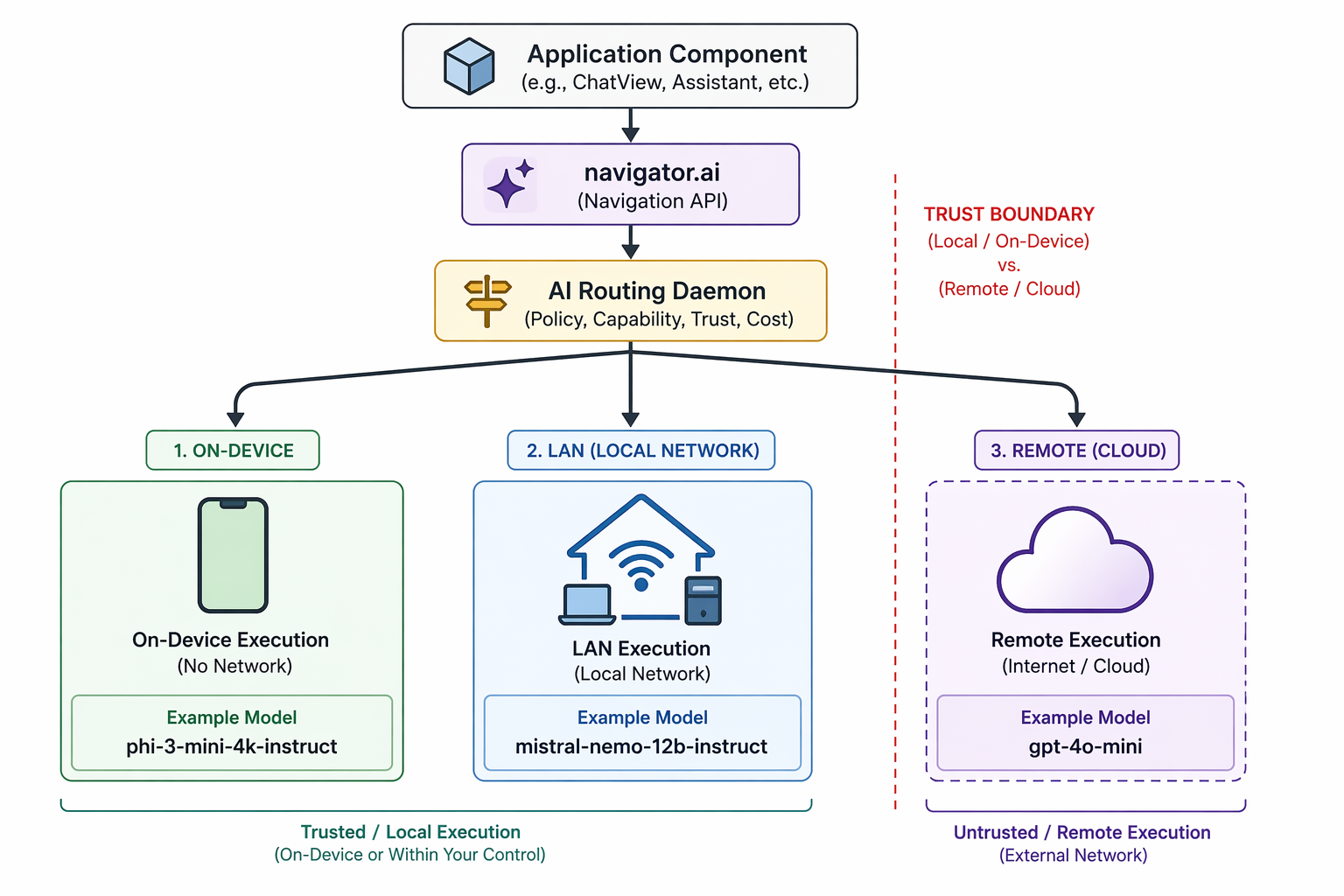

Inference routing diagram
Trust-aware routing between local, LAN, and optional remote tiers.

The navigator.inference API

Intentionally close to the W3C Prompt API proposal — ahead of the curve rather than inventing a proprietary interface.

const result = await navigator.inference.complete({
  prompt: "Summarize the selected text",
  context: ["screen", "clipboard"],  // requires capability grants
  model: "local/preferred"           // routing hint, not hard requirement
});

Model Registry

The system ships a curated model manifest (JSON) listing available models, sizes, capabilities, and sources. The manifest is just a URL. Users can add third-party registries like apt sources. No gatekeeping. Onboarding asks "What do you want Inference to help with?" and recommends based on answers and storage. LAN endpoints (e.g. Ollama) auto-discover via mDNS.

KEY PRINCIPLE

Inference should be a system service, not a platform. Every major OS vendor is currently using Inference as a lock-in vector. This system inverts that: Inference is infrastructure, like networking — open, composable, and replaceable.

08 / HARDWARE

Driver Openness First

Hardware is selected on driver openness first, specs second. The Steam Deck running mainline Linux is the initial target — chosen for driver quality, not TDP. Qualcomm Adreno needs firmware blobs; Mali via Panfrost lags new generations; modems are almost universally proprietary. The Deck sidesteps most of this.

ComponentNotes
GPU (AMD RDNA2)Excellent Mesa/RADV. Vulkan compute for local Inference without ROCm. No firmware blobs for core function.
CPU (Zen 2 APU)x86_64, well-supported by mainline Linux.
InputPhysical controls map cleanly to a mobile-ish UI. Touchscreen available.
Wi-Fi / BTStandard peripherals, upstream driver support.
Modem / CameraExplicitly out of scope for v0. Keeps the driver surface tractable.

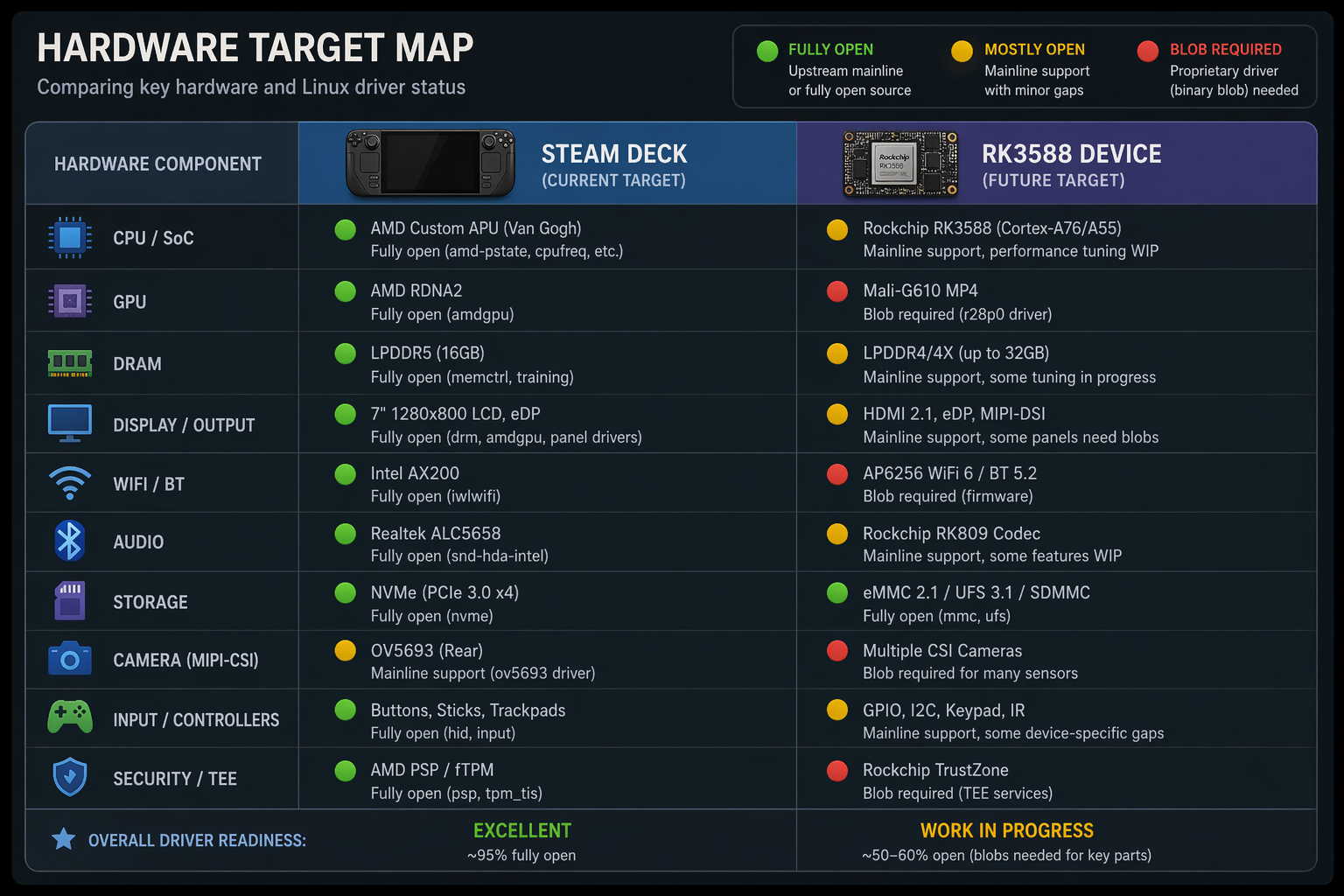

Hardware target map comparing Steam Deck and RK3588
Initial x86_64 focus, then ARM (RK3588) with dedicated NPU path.

Long-Term: RK3588 ARM Port

Once stable on the Deck, the compositor ports to ARM targeting the RK3588. Its dedicated NPU means on-device Inference has a fast path that doesn't compete with the GPU. The web shell layer ports without significant rework — it's already architecture-independent.

09 / PRIOR ART

What Came Before, And What's Different

ProjectRelationship
Firefox OS / B2G
(2013–2016)
Most direct ancestor. Gaia UI was entirely HTML/CSS/JS. Killed by Mozilla for commercial, not technical, reasons. Lesson: distribution and hardware matter as much as architecture.
Capyloon Built by Firefox OS alumni on Gecko. Leans into IPFS and decentralized identity; app model is content-addressed bundles, not URL-installable components.
Greenfield Wayland compositor in HTML5/WASM. Proves "web as compositor" is viable. A proof-of-concept, not a mobile OS.
Phosh / postmarketOS Active, healthy Linux mobile ecosystem. Bets on GTK/GNOME native toolkits — philosophically opposed. Different answer to the same question.
ChromeOS Proves "web renderer as shell" at scale. Entirely proprietary, Google-controlled. Existence proof without the values.

What Makes This Distinct

No existing project combines all of the following:

10 / DELIVERY

Milestones That Prove the Thesis

Success is a daily driver the author uses. Milestones are ordered to demonstrate the thesis as early as possible — each one is a credible demo, not just a checkpoint.

  1. M0 — Hello World. Rust compositor running. Web renderer shows a static HTML page fullscreen on the Deck. Days.
  2. M1 — Web Shell. Status bar, launcher grid, gesture navigation mounted as web components. Weeks.
  3. M2 — First PWA. A PWA launches, runs, closes, returns to home. Touch works. Weeks.
  4. M3 — First Extension. A web component installs via URL and appears in the shell. The thesis is proven.
  5. M4 — Prototype Alpha. Full home screen, Wi-Fi settings, lock screen. Usable day-to-day.
  6. M5 — Inference Integration. Local model selected at setup. navigator.inference live. Writing assistant as reference extension.
  7. M6 — Daily Driver. Stable as the author's primary device. Extension ecosystem seeded. Developer docs.

SEQUENCING PRINCIPLE

M3 — web component installs via URL, appears in shell — is the moment where the entire architectural thesis is demonstrably true. Everything after M3 is refinement.
